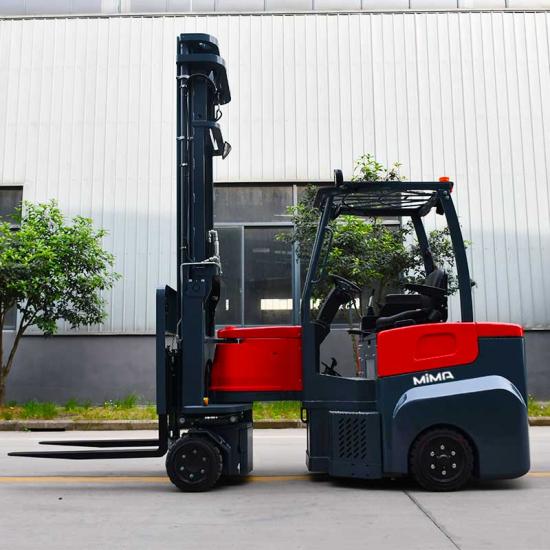

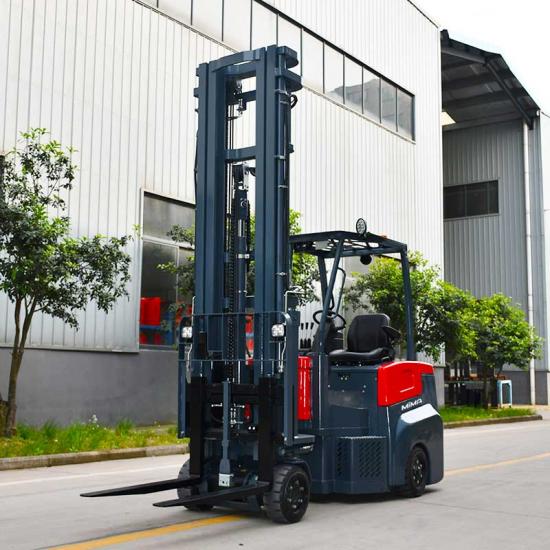

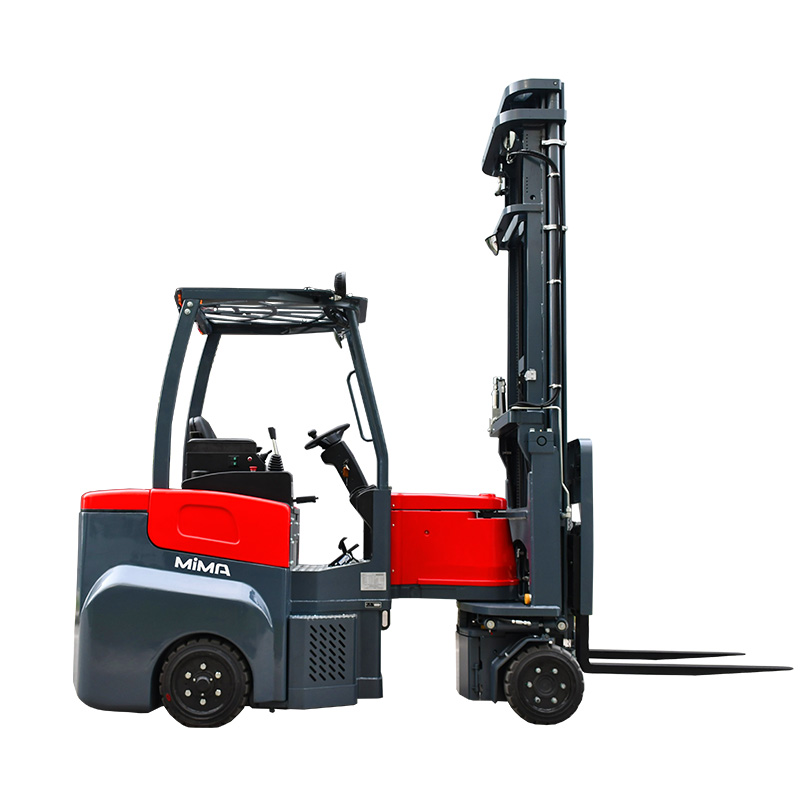

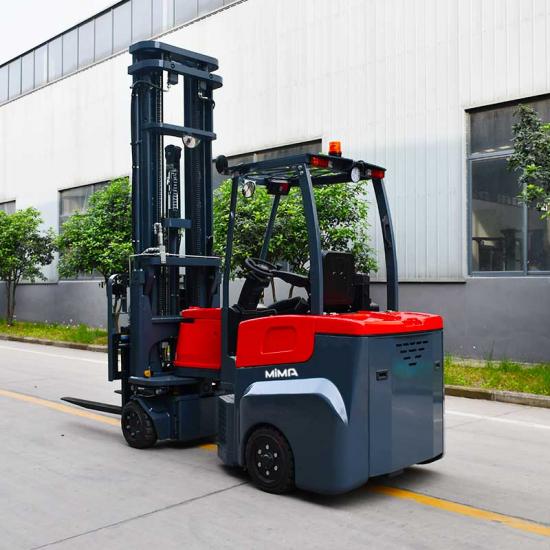

VNA electric articulated forklift

The load capacity of MJ series articulated forklift can be 2 tons and the max lifting height can be 12.5m. Adopting front single drive mechanical differential bridge design, maintenance free full AC motor, large speed ratio gearbox which provides a greater climbing ability. It mainly to meet customers' demand of efficiency priority, medium and heavy duty working conditions, high lifting speed, high driving speed, large capacity battery, excellent ergonomics, easy operation, safety and excellent performance.

item no.:
MJ
payment:
T/T, L/C,
product origin:
china
color:
Red (customized is available)
shipping port:
shanghai, nanjing,ningbo
lead time:
40 days

inquiry now

product detail

VNA electric articulated forklift

Main Features:

Comfort

Adopting new concept and novel streamlined design, the visual effect is greatly improved. This articulated forklift is a reliable choice with compact and simple appearance.
Adopting wide view mast design with wireless camera and video display.

Convenience

International advanced MOSFET AC controller system enables the forklift to be controlled by computer program for walking, steering, lifting, and tilting.
Large-angle fully opened cover and removable rear door panel are convenient for battery replacement and maintenance.

Performance

AC motor has no maintenance cost such as replacing carbon brush. Reliability and long service life can be guaranteed with high-efficiency AC power system, complete protection functions, speed sensor and temperature sensor.
Safety is greatly improved by OPS function as standard configuration.

Equipped with high-brightness laser light, the operator can have a reliable reference when stacking in very narrow aisle.

Manufacturer	Forkvance	Forkvance	Forkvance
Model		MJ20	MJ20
Power type		Battery	Battery
Operation Type		Seated	Seated
Rated capacity	Q(kg)	2000kg	2000kg
Max. Lift height	h3(mm)	4600-12500	4600-12500
Fork size	l/e/s(mm)	1100/100/50	1100/100/50
Turning radius	Wa(mm)	2200	2200
Driving speed	km/h	15	15
Overall length	L1(mm)	3830	3830
Overall width	b1/b2(mm)	980/1260	980/1400
Steering type		Hydraulic	Hydraulic

VNA electric articulated forklift

3-way electric pallet stacker

Forkvance can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all Forkvance products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Certification:

3-way electric pallet stacker

FAQ:

Q1: Are you electric articulated forklift factory?

A1: Yes, we are the professional manufacturer of articulated forklift for more than 20 years.

Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.

Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.

Q4: Can you provide OEM service?

A4: Yes.
