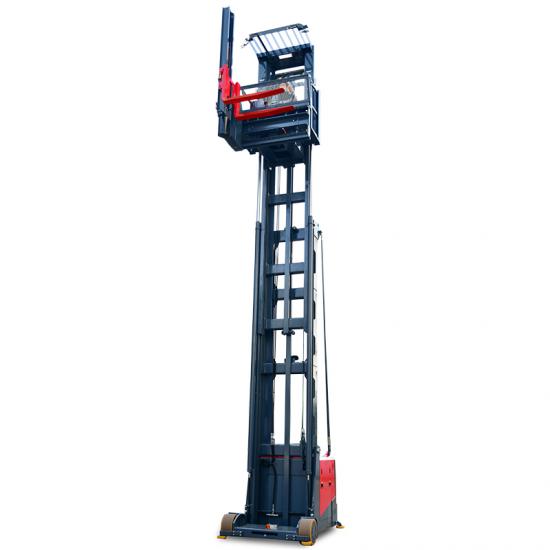

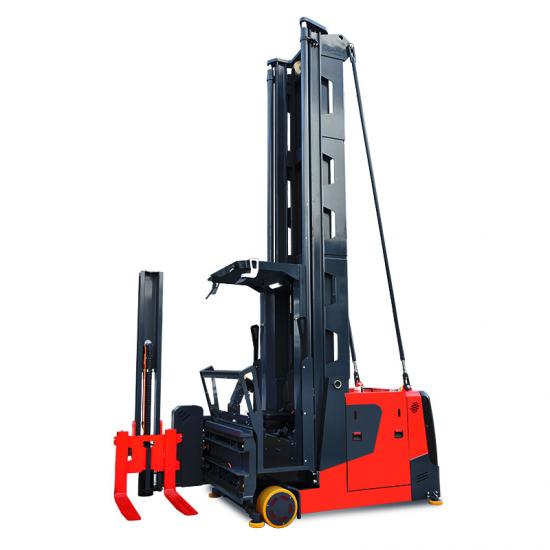

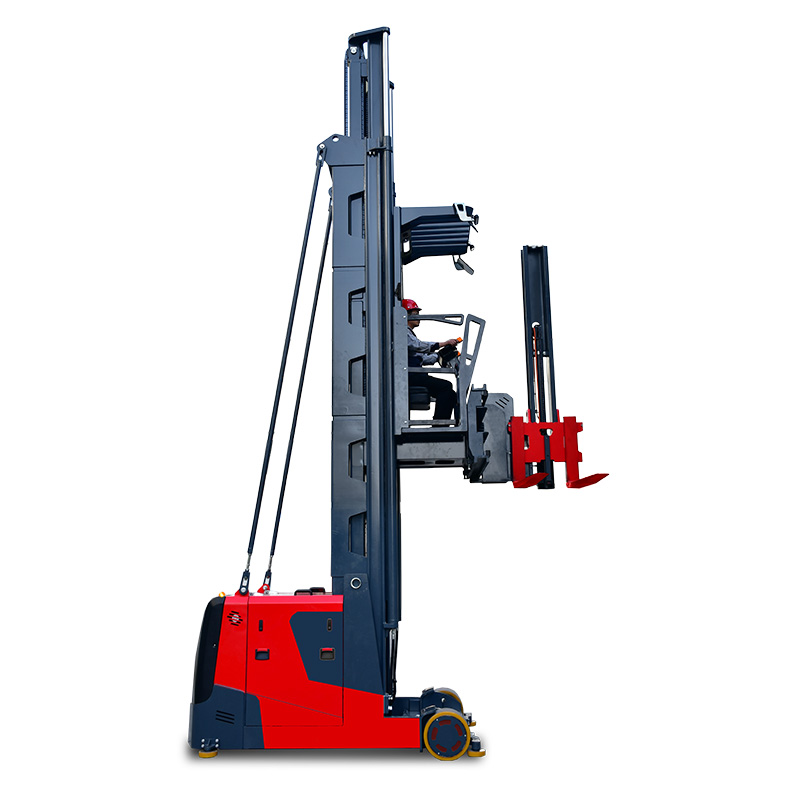

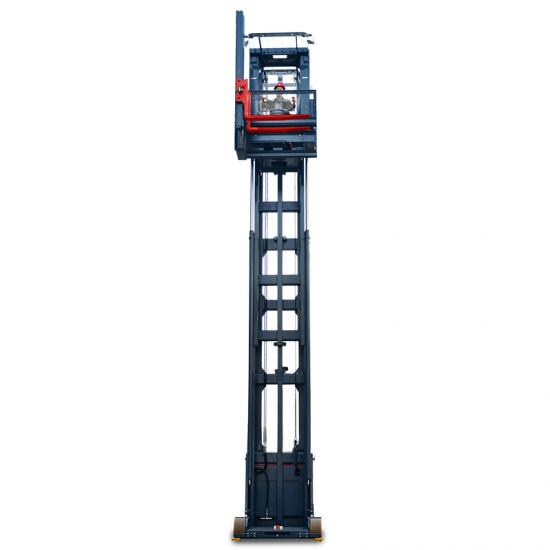

Very narrow aisle man up turret truck with 1.6 ton capacity

MCC Series 1.6ton swing reach forklift can maximize utilization of the warehouse. The innovative design allows this turret truck to load and unload pallets in very narrow aisle and reach higher.

item no.:
MCC
payment:
T/T, L/C,
product origin:
china
color:
Red (customized is available)
shipping port:
shanghai, nanjing,ningbo
lead time:
75 days

inquiry now

product detail

MCC Series 1.6ton very narrow aisle turret truck

Specification:

Brand		Forkvance
Model		MCC
Power Type		Battery
Operation Type		Seated
Service weight(incl. battery)	kg	8760
Rated Capacity	Q(kg)	1600
Load Center	C(mm)	600
Max. Lifting height	h(mm)	14200
Forks size	l/e/s(mm)	1200/125/50
Aisle width	mm	1640
Turning radius	Wa(mm)	2240
Driving speed(load/unload)	km/h	8/8
Lifting speed(load/unload)	mm/s	300/300
Lowering speed(load/unload)	mm/s	350/350
Steering type		EPS

MCA Series 1.5T 3-way pallet stacker Seated

Company Exhibition:

Forkvance can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all Forkvance products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Certification:

FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 20 years.

Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.

Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.

Q4: Can you provide OEM service?

A4: Yes.
