80V Battery Forklifts 3.5-4.0T with Solid tyre

Battery Forklifts is a front-drive horizontal balance forklift with high speed ratio drive axle box assembly for higher working efficiency
● Horizontal handling
● Block stacking
● loading / unloading goods

  • item no.:

    MK35/40
  • payment:

    T/T, L/C, Western Union
  • product origin:

    china
  • color:

    Red (customized is available)
  • shipping port:

    shanghai, nanjing,ningbo and so on
product detail

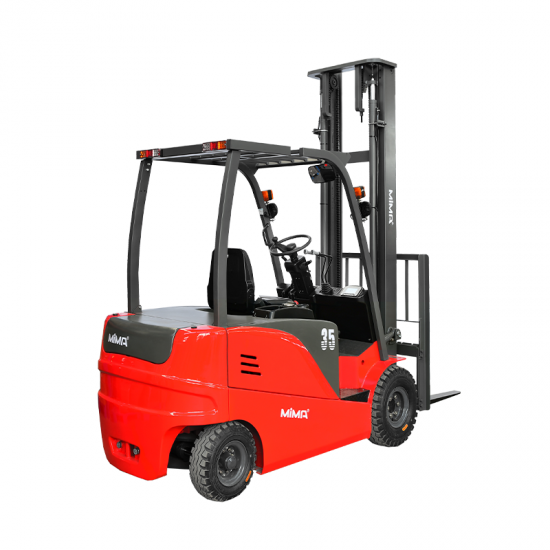

80V Battery Forklifts 3.5-4.0T with Solid tyre


Main Features:

1.Battery Forklifts use Advanced Curtis controller, more stable and safer.

2.Maintenance-free AC drive system makes the vehicle react more quickly and accurately. It is equipped with a full AC system.
3.Wide-view gantry design to improve work efficiency.
4.The whole vehicle layout is more reasonable, with low center of gravity, small size and low self-weight.

Specification:

Brand



Forkvance

Forkvance

Model



MK35

MK40

Power Type



Battery

Battery

Operation Type



Seated

Seated

Service weight(incl. battery)

kg

5170

5300

Rated Capacity

Q(kg)

3500

4000

Load Center

C(mm)

500

500

Lifting height

h3(mm)

3000

3000

Forks size

l/e/s(mm)

1070/125/50

1070/125/50

Front Overhang

x(mm)

468

468

Turning radius

Wa(mm)

2450

2450

Max. climbing ability

%(tanθ )

10/12

10/12

Driving speed(load/unload)

km/h

10/12

10/12

Lifting speed(load/unload)

mm/s

250/

220/

Lowering speed(load/unload)

mm/s

/

/

Battery Forklifts

Products Features:

Safety

● Three sets of brake systems provide safety protection for the forklift and operator regardless of whether the forklift is in operation or not.

● Ramp auxiliary brake system. When the forklift starts on the ramp, the system immediately applies a reverse force to the tire to prevent the forklift from moving backwards.

● The battery sinking design performs excellent stability and more load capacity with .

Energy saving

●Applications of LED headlights/warning lights, low-resistance tires, steering automatic dormancy, and electronically controlled automatic temperature control systems make the forklift endurance strong.

Comfortable

● When the gantry is lowered to the bottom, the buffer technology greatly reduces the impact of the mast and reduces the damage of the cargo. Combined with the vehicle noise reduction technology, the operator works easily and comfortably.

● The ergonomic design of the wide legroom provides the operator with a comfortable, safe and efficient operating environment.


Company Exhibition:


Battery Forklifts

Forkvance can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all Forkvance products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Certification:



Battery Forklifts


FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 20 years.


Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.


Q3:  Is customized solution available?

A3: Yes, we can provide different customized solution.


Q4: Can you provide OEM service?

A4: Yes.
